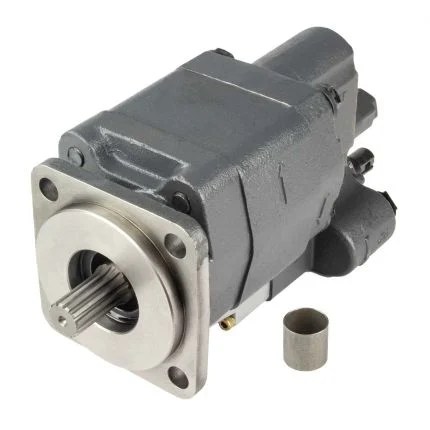

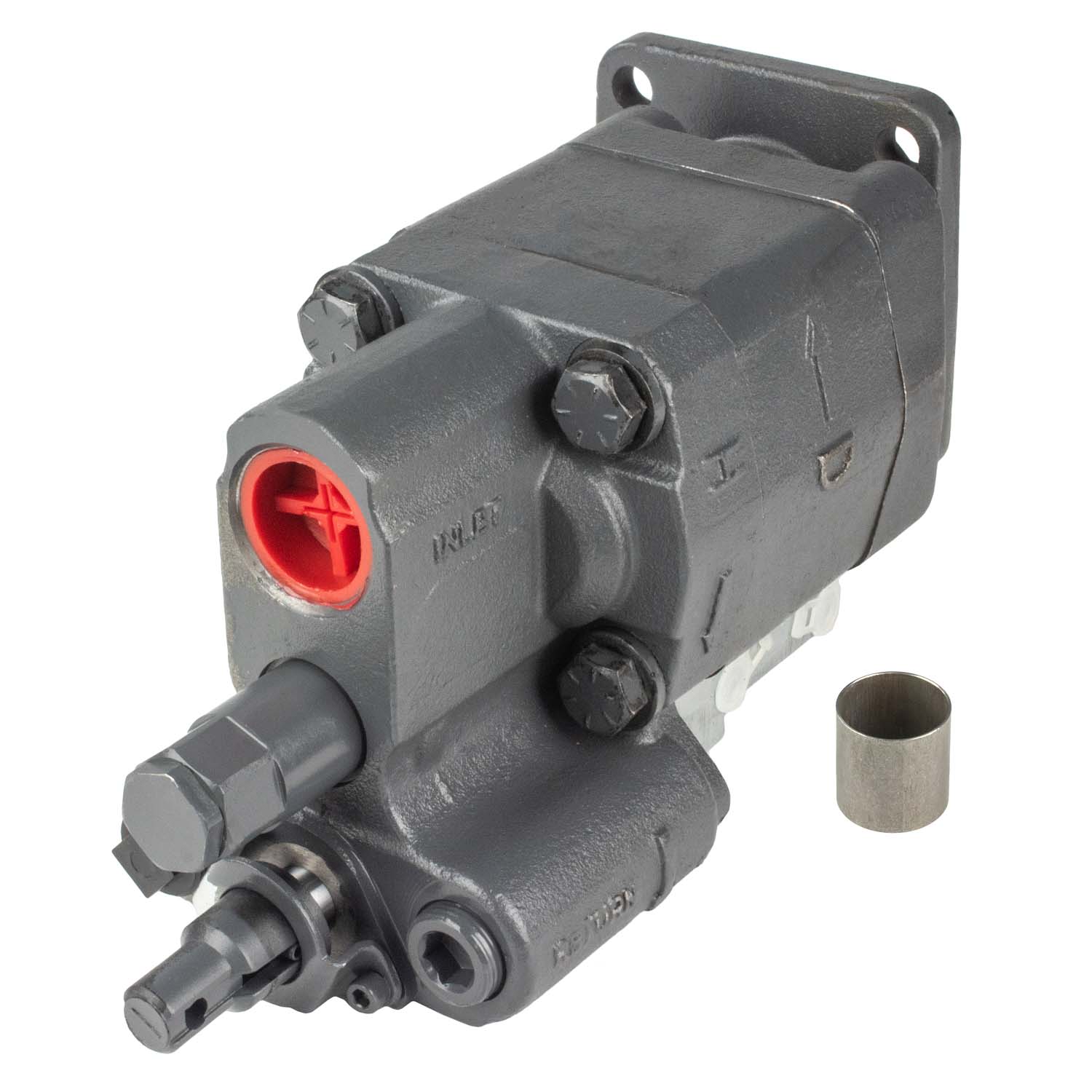

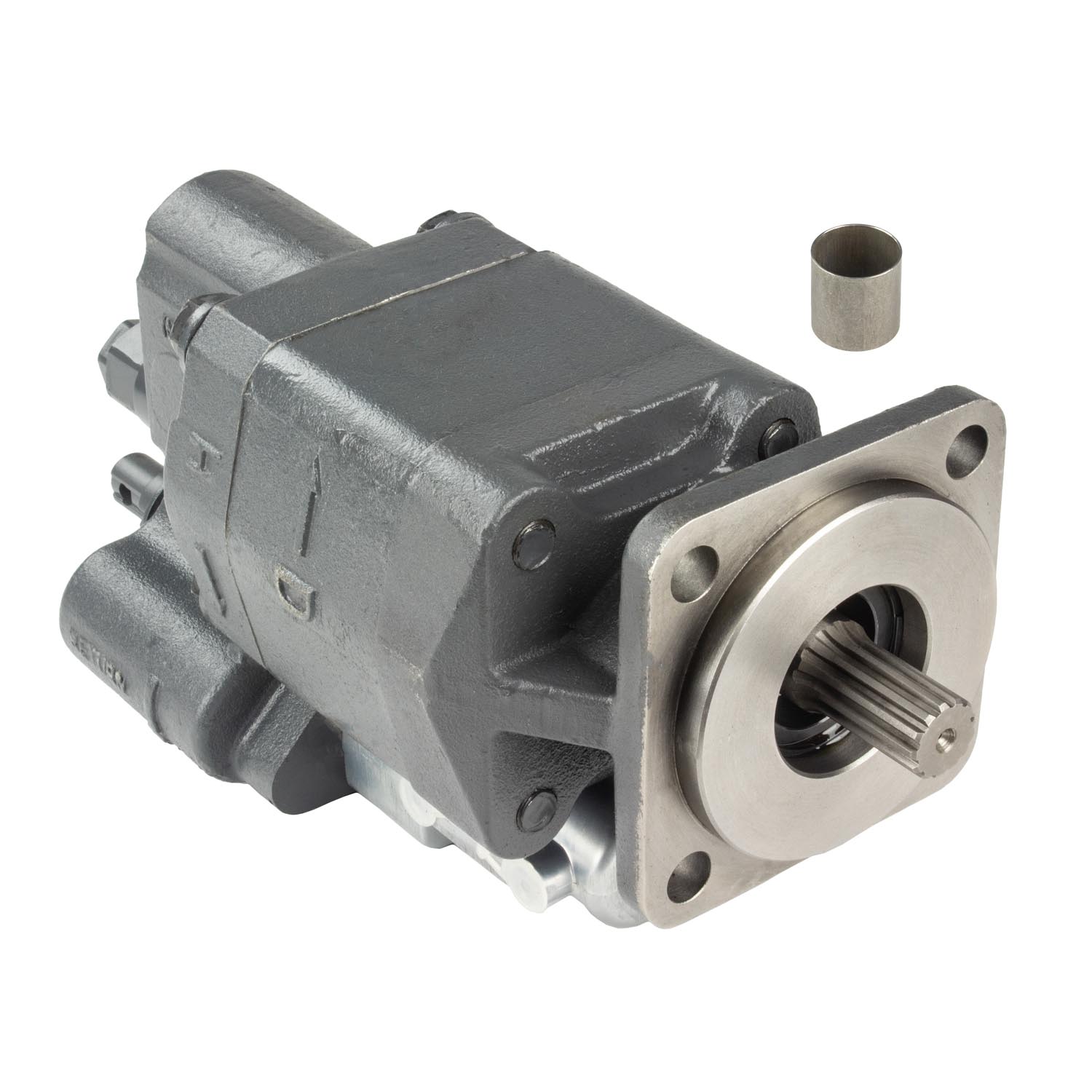

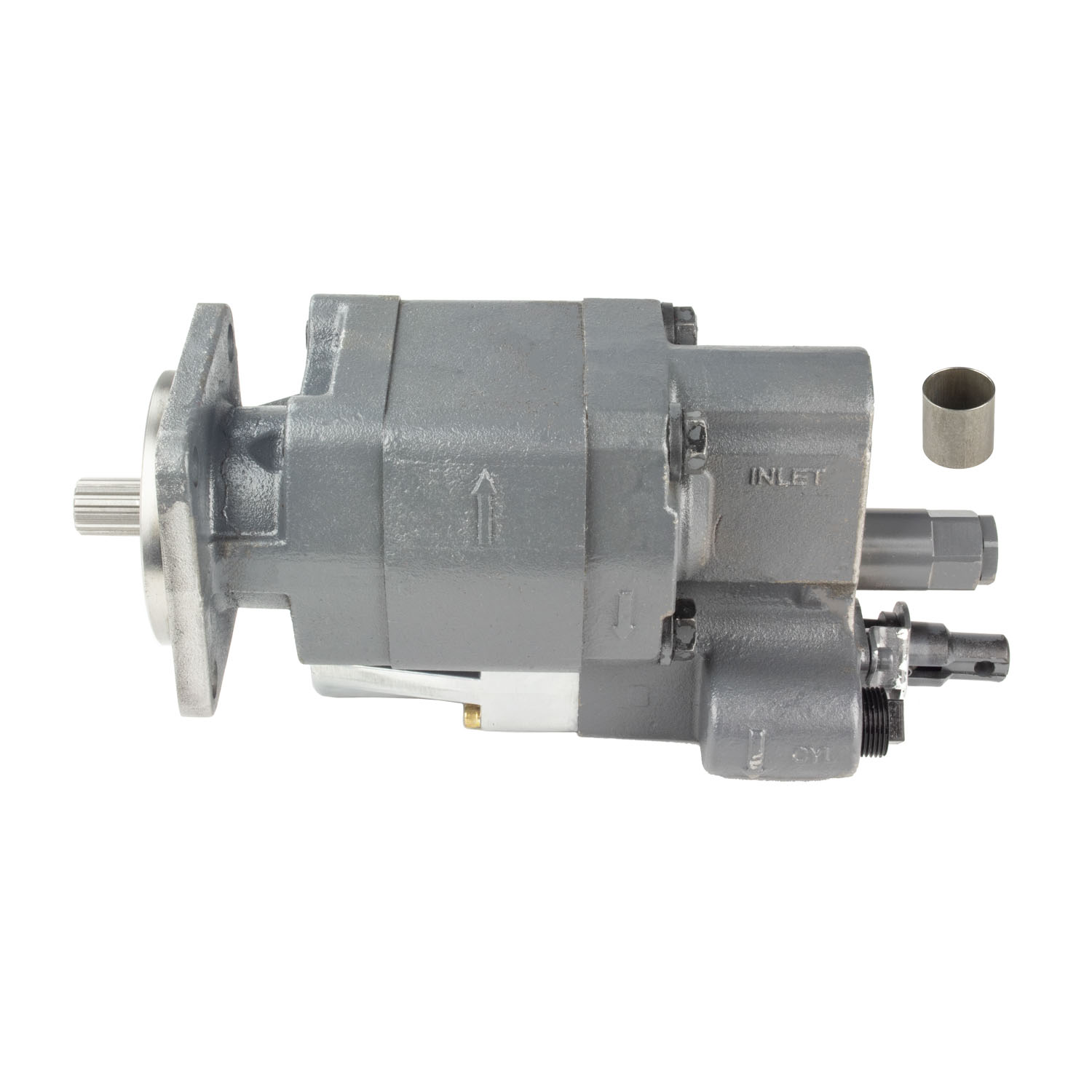

15 GPM Hydraulic Pump, Right Hand Rotation Gear Pump with Air Shift – WA102G-RAS

Please verify fit with the OEM Part number interchanges list below

Brand:World American

WA102G-RAS
G SERIES DIR. MOUNT RH W/ AIR SHIFTER
UPC:00698231379578
Flow Rate:15 @ 1,000 RPM U.S. Gallons per mi
Input Shaft Diameter:0.875 Inch
Input Spline Quantity:13
Maximum RPM:3000 Revolutions per Minu
Maximum Working Pressure:3000 Pounds per Square In
Mounting Type:Direct
Pressure Port Diameter:.75 NPT Inch
Pump Type:Gear
Return Port Diameter:.75 NPT Inch
Rotation Direction:Right
Series:G
Series Type:G Series
Shift linkage Type:Air
System Type:3 Line
System Type:2 Line
Thread Type:NPT

Replaces:

• Parker:
  308-9310-413
• Parker:
  308-9310-903
• Parker:
  3089310413
• Parker:
  3089310903
• PERMCO:
  400-80263
• OE Aftermarket:
  DG102D-07-RAS
• OE Aftermarket:
  DG102D-15-RAS
• OE Aftermarket:
  DG102D-20-RAS
• PERMCO:
  DMD-400-20-XR-200-AS
• PERMCO:
  DMD-400-20-ZR-200-AS
• Parker:
  G102-1-2.0-R-4S-AS
• OE Aftermarket:
  G102AS-CW
• Parker:
  G102RAS
• Genuine Newstar:
  MHC-102-G-20-R-AS
• Genuine Newstar:
  MHC102-G-20-R-AS
• Genuine Newstar:
  S-18426
• S&S Truck Parts:
  S-18979
• Genuine Newstar:
  S18426
• S&S Truck Parts:
  S18979
• Muncie:
  S2AD1-15-02BPRR
• Muncie:
  S2AD15-2BPRR
• Muncie:
  S3AD1-15-02BPRR
• Muncie:
  S3AD15-2BPRR
• World American:
  WAP102G-RAS
• Genuine Newstar:
  XX-G102AS-CW
• OE Aftermarket:
  XXG102ASCW
